Wall Mounted Retractable Belt Barrier 2.3m / 4.5m – Steel Housing, Chrome or Black, 7 Belt Colours

Wall mounted retractable belt barrier with 2.3m or 4.5m belt and heavy-gauge steel housing — chrome polished or matt black. Screws directly to the wall to control doorways, corridors, queues and restricted zones, then retracts cleanly out of sight. Specified by hotels, hospitals, transport hubs, retailers and event managers across the UK.

Key specifications

Belt length	2.3m or 4.5m
Belt width	50mm woven polyester, edge-locked stitching
Housing	Cold-rolled steel, chrome polished or black powder-coat, approx. 105 × 105 × 65 mm
Belt colours	Black, Red, Blue, Yellow, Red/White Chevron, Black/Yellow Chevron, Custom Print
Retraction	Slow-retract self-tensioning spring — controlled rewind, no whip, no sag at full length
Mounting	Wall plate, screws and plugs supplied — masonry, brick, plasterboard (with anchors) or steel
End fitting	Magnetic or wall-clip receiver supplied — pair units for two-way runs
Weight	2.3m: ~1.2 kg · 4.5m: ~1.6 kg
Environment	Indoor and covered outdoor
Warranty	2 years on housing and mechanism

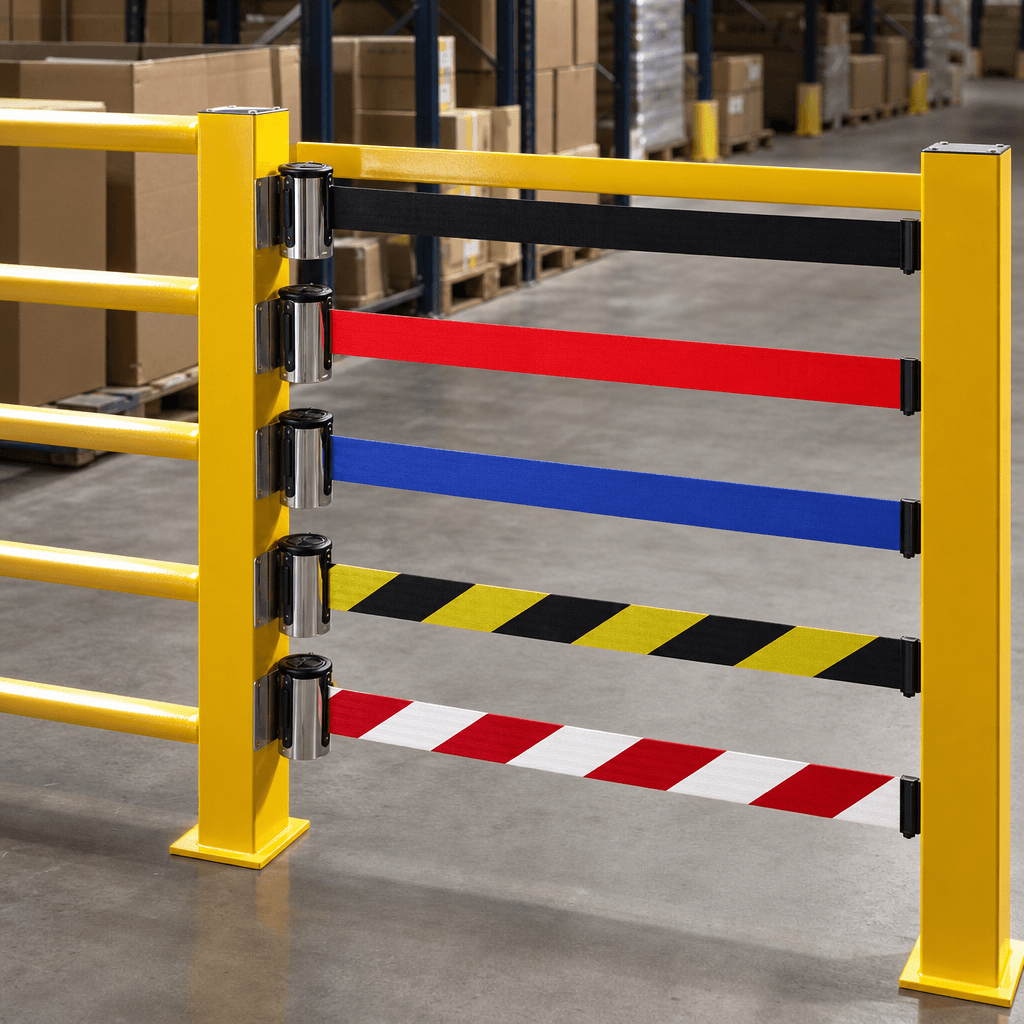

Belt colour guide

Belt	Best for
Black	Hotels, receptions, premium retail, restaurants
Red	Restricted access, fire routes, no-entry zones
Blue	Healthcare, education, corporate facilities
Yellow	High-visibility caution — warehouses, light industrial
Red/White Chevron	Hazard areas — wet floors, maintenance, fire exits
Black/Yellow Chevron	Safety zones — loading bays, plant rooms, BS 5499 routes
Custom Print	Branded belts — logos, queue instructions, sponsor messaging (dye-sublimated, won't peel or fade)

Length selection

• 2.3m — single doorways, narrow corridors, lift lobbies, single queue lanes
• 4.5m — double doorways, wide reception runs, two-lane queues, event entry gates. Choose 4.5m for any span over 2 metres.

Where it's used

• Hotels & hospitality: reception flow, restaurant entrances, lift lobbies
• Healthcare: A&E queues, ward access restriction, pharmacy lines
• Retail: till queues, fitting room control, customer service desks
• Transport: check-in extensions, ticket office queues, taxi ranks
• Education: exam corridor control, school receptions, libraries
• Industrial: plant room access, maintenance zones, restricted machinery areas

Installation

Single-person fit in under 10 minutes with a drill and the supplied fixings. Mount the housing 950–1000 mm from finished floor level; fit the receiver clip opposite at the same height, or pair two units for a continuous run. Wheelchair-accessible — the belt clears fully when stowed.

Compliance

Steel housings meet BS EN commercial-use durability requirements. Chevron belts follow BS 5499 safety signage convention. Suitable for HSE-regulated workplace transport and fire-route management.

FAQ

Q: Can I fit this to plasterboard?
A: Yes — use the supplied wall plugs or upgrade to plasterboard cavity anchors (M5 minimum) for heavier-use environments.

Q: Will the belt sag at 4.5m?
A: No — the spring mechanism self-tensions across the full length so the belt stays taut.

Q: Can I pair two units for a longer run?
A: Yes — mount a second unit on the opposite wall; the magnetic/clip receiver pairs them, and multiple units can be chained along a corridor.
